Fiche GSTD42 (ELEM TECHNIC) - R

Agrandir l'image

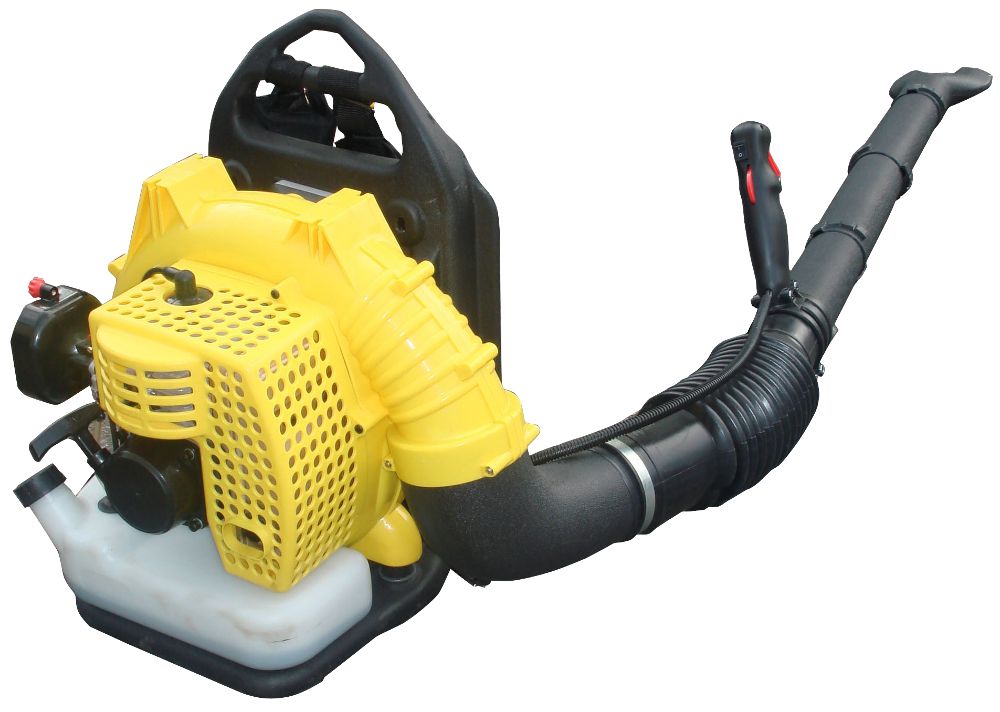

	SOUFFLEUR DE FEUILLES A DOS THERMIQUE GARDEO 41,5CC CylindrÃ©e: 41,5CC Moteur 2 temps Vitesse: 6500t/min Soufflerie 255km/h RÃ©servoir 1500ml LivrÃ© en boÃ®te couleur EAN : 5411074125080 Garantie : 2 ans

Fichiers :

172.4 Ko
fiche-technique.pdf

Pour lire les documents PDF, téléchargez Adobe Reader.

Pièces :

Nom de la vue	Num	Référence	Description de la pièce
ENGINE	1	GSTD42-AIR	AIR FILTER BOLT
ENGINE	2		AIR FILTER COVER
ENGINE	3		FILTER
ENGINE	4		AIR FILTER SEPARATION BLOCK
ENGINE	5		SCREWS M5 X 68
ENGINE	6		SPRING WASHER
ENGINE	7		FLAT WASHER
ENGINE	8		AIR FILTER HOUSING
ENGINE	9		AIR FILTER HOUSING
ENGINE	10		INLET VALVE
ENGINE	12	GSTD42-12	CARBURETOR
ENGINE	13	GSTD42-13	CARBURETOR GASKET
ENGINE	15	GSTD42-15	CARBURETOR BASE
ENGINE	16	GSTD42-16	CARBURETOR BASE WASHER
ENGINE	24	GSTD42-6	STATOR
ENGINE	47	GSTD42-47	SPARK PLUG CAP
ENGINE	58	GSTD42-58	SPARK PLUG
VUE ECLATEE	20	GSTD42-20	FUEL TANK
VUE ECLATEE	33	GSTD42-33	AIR OUTLET
VUE ECLATEE	34	GSTD42-34	TUBE 2
VUE ECLATEE	35	GSTD42-35	TUBE 1 ASS’Y
VUE ECLATEE	36	GSTD42-K	S.T. SCREW M3 X 10
VUE ECLATEE	37		RIGHT HANDLE
VUE ECLATEE	38		GASOLINE SWITCH
VUE ECLATEE	39		GASOLINE SWITCH SPRING
VUE ECLATEE	40		LEFT HANDLE
VUE ECLATEE	41		LOCK-OFF TRIGGER SPRING
VUE ECLATEE	42		LOCK-OFF TRIGGER
VUE ECLATEE	43		OFF SWITCH
VUE ECLATEE	44	GSTD42-44	LARGE WAVE TUBE
