Fiche DCBT33D (ELEM GARDEN TECHNIC) - R

Agrandir l'image

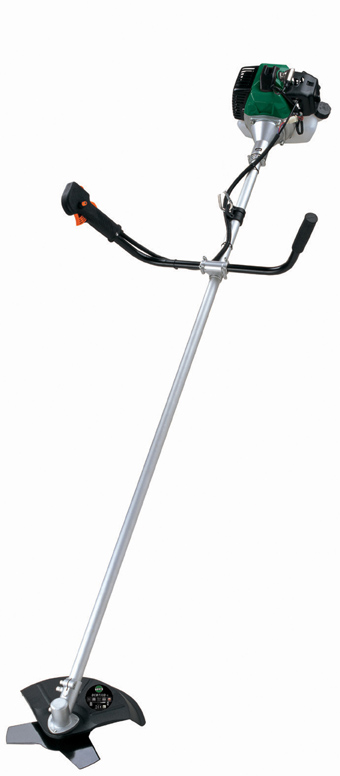

	D�BROUSSAILLEUSE THERMIQUE Moteur 2 temps Puissance : 33 CC (1,1 Kw) Nombre de Tmin : 7000 Tmin Transmission RIGIDE Guidon duplex Equipée d'une : Lame 3 dents : diam 23 cm Tête double fil : diam 42 cm Diam du fil : 2,2 mm Long du fil : 5 mètres Alimentation tap and go EAN : 5411074108045 Garantie : 3 ans

Fichiers :

94.5 Ko
fiche-technique.pdf

847.8 Ko
manuel.pdf

347.0 Ko
manuel-2.pdf

196.6 Ko

202.2 Ko

Pour lire les documents PDF, téléchargez Adobe Reader.

Pièces :

Nom de la vue	Num	Référence	Description de la pièce
ENGINE	14	DCBT33D-BOBINEALLUMA	IGNITION SET
ENGINE	18	DCBT33D-RESERVOIR	FUEL TANK
ENGINE	32	DCBT33D-32	CARBURETOR GASKET
ENGINE	33	DCBT33D-CARBURATEUR	CARBURETOR
ENGINE	34	DCBT33D-FILTREAIR	AIR CLEANER ASSY
ENGINE	35		AIR CLEANER COVER STATOR
ENGINE	36		BOLT
ENGINE	37		AIR CLEANER SPONGE
ENGINE	38		AIR CLEANER COVER
ENGINE	39		BOLT
ENGINE	40	DCBT33D-LANCEUR	STARTER GRIP
ENGINE	41		STARTER
ENGINE	42		BOLT
ENGINE	43		STARTER CASE COMP
ENGINE	44		SPRING RETURN
ENGINE	45		ROPE WHEEL
ENGINE	46		ROPE
ENGINE	47		GASKET
ENGINE	48		BOLT
ENGINE	49		STARTER GASKET
ENGINE	50		FLANGE NUT
ENGINE	51	DCBT33D-CLIQUET	RATCHET
ENGINE	52		RATCHET SPRING
VUE ECLATEE	2	DCBT33D-SUPLAME	SHIELD RING
VUE ECLATEE	3		SHIELD RING
VUE ECLATEE	4		AXLETREE
VUE ECLATEE	5		NINE TEETH SPLINES
VUE ECLATEE	6		BOLT
VUE ECLATEE	7		BOLT
VUE ECLATEE	8		ALUMINIUM GASKET
VUE ECLATEE	9		BOLT
VUE ECLATEE	10		GEAR CASE
VUE ECLATEE	11		AXLETREE
VUE ECLATEE	12		DRIVEN BEVEL GEAR
VUE ECLATEE	13		SPLINE DRIVE SHAFT
VUE ECLATEE	14		AXLETREE
VUE ECLATEE	15		SHIELD RING
VUE ECLATEE	16		OIL SEAL
VUE ECLATEE	17		CUTTER HEAD
VUE ECLATEE	18		BOLT
VUE ECLATEE	19	DCBT33D-FIXLAME	SPLINES CLAMP
VUE ECLATEE	20	DCBT33D-PART2	BIT
VUE ECLATEE	21	DCBT33D-FIXLAME	CLAMP
VUE ECLATEE	25	DCBT33D-43	COVER
VUE ECLATEE	32	DCBT33D-COUSSINET	POWDER FROTH METALLURGY MRAP
VUE ECLATEE	33	DCBT33D-ARBRE	NINE TEETH TRANSMISSION SHAFT
VUE ECLATEE	43	DCBT33D-43	BOLT
VUE ECLATEE	51	DCBT33D-POIGNEE	GUN SWITCH HANDLE ASSEMBLY
VUE ECLATEE	54	DCBT33D-FIXATIONBRAS	TOP CLAMP
VUE ECLATEE	62	BODCBT33D	NYLON CUTTER
