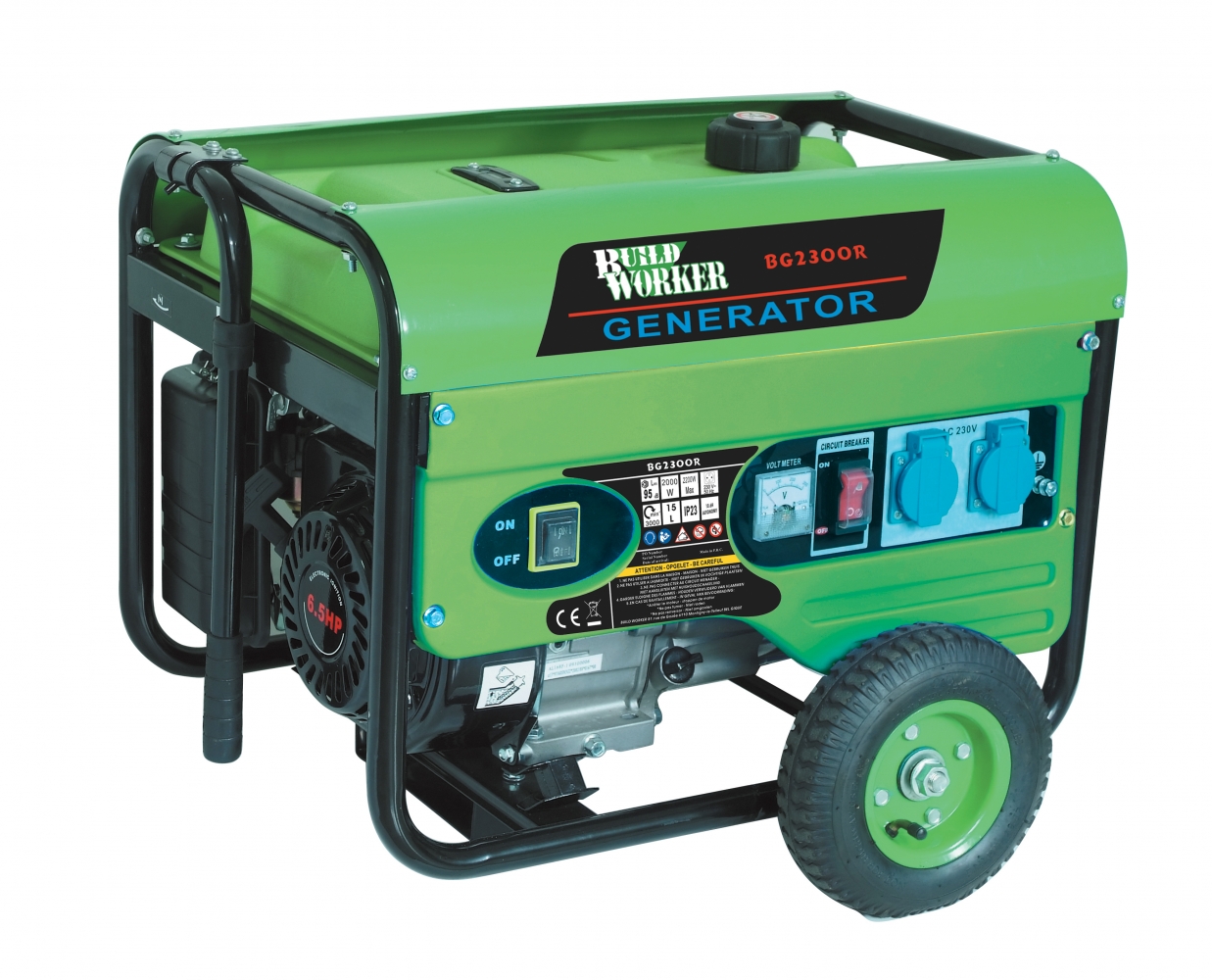

Fiche BG2300R (BUILD WORKER) - R

Agrandir l'image
	GENERATEUR MAX 2300W + ROUES Puissance max: 2200W Vitesse: 3000/min Autonomie: 10,6H Capacité du réservoir: 15L Moteur 4 temps Avec roues Livré en boîte couleur EAN : 5411074134686 Garantie : 3 ans

Fichiers :

170.4 Ko
fiche-technique.pdf

172.9 Ko
fiche-technique-2.pdf (SAFETY WARNING)

44.5 Ko
fiche-technique-3.pdf (SAFETY WARNING)

3.43 Mo
manuel-d'utilisation.pdf

492.2 Ko

683.2 Ko

Pour lire les documents PDF, téléchargez Adobe Reader.

Pièces :

Nom de la vue	Num	Référence	Description de la pièce
ENGINE	6	BG2800R-TRINGLE	GOVERNOR ROD
ENGINE	11	BG2800R-47	PULLING TRAY COVER
ENGINE	12		SPRING
ENGINE	13		PULLING TRAY
ENGINE	14		SPRING
ENGINE	15		STARTING FEET
ENGINE	16		PIN
ENGINE	17		CLIP SPRING
ENGINE	18		IMPACTED BAN
ENGINE	19		BOLT M6X15
ENGINE	42	BG2800R-42	CRANKCASE GASKET
ENGINE	43	BG2800R-95	OIL GAUGE
ENGINE	54	BG2800R-54	CARBURETOR
ENGINE	60	BG2800R-60	CYLINDER HEAD GASKET
ENGINE	70	BG2800R-70	SPARK PLUG
ENGINE	77	BG2800R-87	AIR CLEANER
ENGINE	95	BG2800R-95	OIL GAUGE
VUE ECLATEE	21	BG2800R-6	CARBON BRUSH
VUE ECLATEE	22	BG2800R-10	ADJUST VOLTAGE REGULATOR
